BEARING HOUSING TECHNICAL



TECHNICAL REQUEST OF CAST
UPRIGHT HOUSING



Unit: um

Housing No
H Deviations
J Deviations
P
IP
PH
PA
AK
LP
203 203 203 203
 ±150

±700

204 204 204 204 204
205 305 X05 205 205 205 205
206 306 X06 206 206 206 206
207 307 X07 207 207 207 207
208 308 X08 208 208 208 208 208
209 309 X09 209 209 209 209 209
210 310 X10 210 210 210 210 210
211 311 X11 211 211 211
±200
±1000
212 312 X12 212 212 212
213 313 X13 213 313 213
214 314 X14 314
215 315 X15 315
216 316 X16 316
217 317 X17 317
218 318 X18 318
319 319
±300
320 X20 320
321
322 322
324 324
326 326
328 328

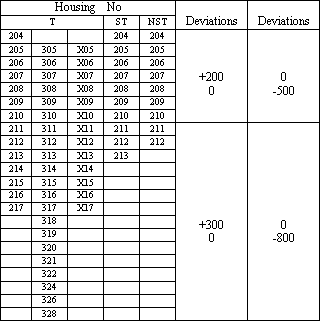

TECHNICAL REQUEST OF CAST
TAKE-UP HOUSING
