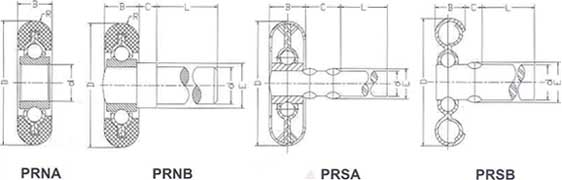

| Unit No. |
Dimensions (mm) |
Ball
|
|||||||
|
D |
d |
E |
B |
C |
L |
R |
No. |
Dia.
|
|
PRNA 4601 |
46 | 11.2 | 12.5 | 6.25 | 10 | 1/4 | |||
PRNA 4701 |
47.5 | 11.2 | 12.5 | 6.25 | 10 | 1/4 | |||
PRNA 4801 |
48.5 | 11.2 | 12.5 | 6.25 | 10 | 1/4 | |||
PRNB 4601 |
46 | 11.0 | 15.0 | 12.5 | 17.3 | 85.0 | 6.25 | ||
PRNB 4602 |
46 | 11.0 | 14.0 | 12.5 | 14.0 | 96.0 | 6.25 | ||
PRNB 4603 |
46 | 11.0 | 14.0 | 12.5 | 14.0 | 71.0 | 6.25 | ||
PRNB 4604 |
46 | 12.0 | 14.2 | 12.5 | 19.8 | 86.58 | 6.25 | ||
PRNB 4605 |
46 | 12.0 | 14.2 | 12.5 | 19.8 | 162.5 | 6.25 | ||
PRNB 4606 |
46 | 9.4 | 12.7 | 12.5 | 103.7 | 4.7 | 6.25 | ||
PRNB 4607 |
46 | 11.0 | 15.0 | 12.5 | 17.3 | 165.2 | 6.25 | ||
PRNB 4608 |
46 | 12.7 | 16.0 | 12.5 | 13.5 | 99.0 | 6.25 | ||
PRNB 4609 |
46 | 11.0 | 14.2 | 12.5 | 18.8 | 87.7 | 6.25 | ||
PRNB 4610 |
46 | 11.0 | 14.2 | 12.5 | 5.5 | 76.0 | 6.25 | ||
PRNB 4611 |
46 | 11.0 | 14.2 | 12.5 | 12.5 | 20.75 | 6.25 | ||
PRNB 4612 |
46 | 11.0 | 14.2 | 12.5 | 12.5 | 225.0 | 6.25 | ||
PRNB 4613 |
46 | 11.0 | 14.2 | 12.5 | 12.5 | 94.0 | 6.25 | ||
PRNB 4614 |
46 | 11.0 | 15.0 | 12.5 | 17.3 | 165.2 | 6.25 | ||
PRNB 4615 |
46 | 11.0 | 15.0 | 12.5 | 17.3 | 85.0 | 6.25 | ||
PRNB 4616 |
46 | 11.0 | 14.0 | 12.5 | 6.0 | 82.0 | 6.25 | ||
PRNB 4617 |
46 | 11.0 | 14.2 | 12.5 | 12.5 | 94.0 | 6.25 | ||
| Unit No. |
Dimensions (mm) |
Ball
|
||||||
|
D |
d |
E |
B |
C |
L |
No. |
Dia.
|
|
PRSA 4601 |
46 | 11.0 | 13.6 | 12.0 | 13.5 | 88.5 | 10 | 1/4 |
PRSA 4602 |
46 | 11.0 | 13.6 | 12.0 | 13.5 | 152.0 | 10 | 1/4 |
PRSA 4603 |
46 | 11.0 | 13.6 | 12.0 | 13.5 | 215.1 | 10 | 1/4 |
PRSA 4604 |
46 | 11.0 | 13.6 | 12.0 | 21.5 | 80.5 | 10 | 1/4 |
PRSA 7701 |
71 | 11.0 | 13.6 | 18.6 | 15.8 | 85.6 | 11 | 1/4 |
PRSA 7702 |
71 | 11.0 | 13.6 | 18.6 | 15.8 | 168.1 | 11 | 1/4 |
PRSA 7703 |
71 | 11.0 | 13.6 | 18.6 | 15.8 | 212.5 | 11 | 1/4 |
PRSB 4601 |
46 | 11.0 | 13.6 | 11.4 | 14.1 | 88.5 | 11 | 1/4 |
PRSB 4602 |
46 | 11.0 | 13.6 | 11.4 | 15.3 | 167.3 | 11 | 1/4 |
