THERMAPLASTIC HOUSING - 4 BOLT FLANGE

Matching Stainless or Chrome steel Spherical out-side surface Ball Bearing

Housing: FPL-200 Series

Unit No.
BEARING BORE DIA.
Dimensions (mm)
Weight (kg)

max. TORQUE

inch
mm
a
e
g
l
s
z
i
Bi
n
Bolt Dia.
Nm
FPL 201 1/2 12
86 63.5 13.4 27.8 11 36.3 18 31 12.7 0.12 M10 18
FPL 202 9/16, 5/8 15 86 63.5 13.4 27.8 11 36.3 18 31 12.7 0.12 M10 18
FPL 203 11/16 17 86 63.5 13.4 27.8 11 36.3 18 31 12.7 0.12 M10 18
FPL 204 3/4 20 86 63.5 13.4 27.8 11 36.3 18 31 12.7 0.13 M10 18
FPL 205 13/16, 7/8, 15/16, 1 25 95 70 14 28 11 36.7 17 34 14.3 0.17 M10 25
FPL 206 1.11/16, 1.1/8, 1.13/16, 1.1/4 30 107 83 14.3 31.5 11 41.4 19.2 38.1 15.9 0.20 M10 30
FPL 207 1.1/4, 1.13/16, 1.3/8, 1.7/16 35 118 92 15.5 34.8 13 46.9 21.5 42.9 17.5 0.26 M12 35
FPL 208 1 .1/2, 1.9/16 40 130 102 17 37.5 14 53.2 23 49.2 19 0.35 M12 45



MODE OF LOAD
BREAKING POINT OF HOUSING (N)
204
205
206
207
208
209
210
8800 13700 12650 12750 13100 13360 13850
7700 10000 10600 10800 11100 11400 11750
5000 8100 5750 7500 8500 8950 9550

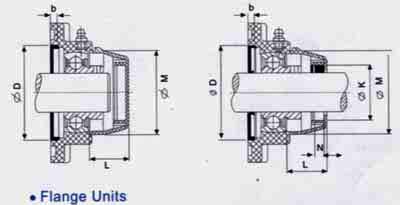

PLASTIC COVERS (OPEN/CLOSE)

Shaft diameter
Dimensions (mm)
mm
inch
K
N
L
M
D
b
12 1/2 32 7 23 50 52 6
15 9/16, 5/8 32 7 23 50 52 6
17 11/16 32 7 23 50 52 6
20 3/4 32 7 23 50 52 6
25 13/16, 7/8, 15/16, 1 37 7 25 55 62 6
30 1.11/16, 1.1/8, 1.13/16, 1.1/4 42 7 30 64 72 6
35 1.1/4, 1.13/16, 1.3/8, 1.7/16 47 7 32 74.5 82 6
40 1.1/2, 1.9/16 52 7 37 84 88 6
45 1.5/8, 1.11/16, 1.3/4 57 7 41 89 93 6
50 1 .13/16, 1.7/8, 1.15/16, 2 62 7 47 94 98 6
