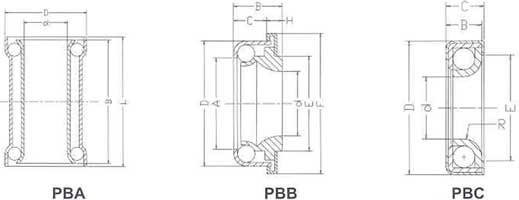

| Unit No. |
Dimensions (mm) |
Ball
|
|||||||||
|
D |
d |
B |
L |
No. |
Dia.
|
||||||
PBA 2208 |
22 | 8 | 25 | ||||||||
PBA 2812 |
28 | 12 | 35 | ||||||||
PBA 3015 |
28 | 15 | 28 | 30 | 24 | ||||||
| Unit No. | Dimensions (mm) |
Ball
|
||||||||
D |
d |
A |
B |
E |
F |
C |
H
|
No. |
Dia.
|
|
PBB 2608 |
26.1 | 8 | 13 | 17.5 | 31.3 | 8.5 | 4.5 | 15 | 5/32 | |
PBB 2610 |
26.1 | 10 | 13 | 17.5 | 31.3 | 8.5 | 4.5 | 15 | 5/32 | |
SUC 2713 |
26.1 | 12 | 13 | 17.5 | 31.3 | 8.5 | 4.5 | 15 | 5/32 | |
SUC 3313A |
26.1 | 12 | 12.3 | 17.5 | 31.3 | 8.5 | 3.8 | 15 | 5/32 | |
SUC 3313B |
27.1 | 12.1 | 16.7 | 12.3 | 18 | 30.2 | 8.5 | 3.8 | 12 | 3/16 |
| Unit No. | D |
d |
B |
C |
E |
R |
PBC 2712 |
27 | 12 | 7.9 | 9.1 | 19.1 | 2.4 |
PBC 3215 |
32 | 15 | 7.9 | 9.1 | 23 | 3.6 |
PBC 3515 |
35 | 15 | 10.7 | 12.3 | 26.2 | 4.8 |
PBC 4020 |
40 | 20 | 11.9 | 12.7 | 31.8 | 3.6 |
