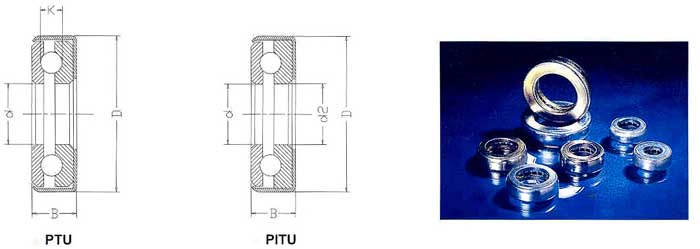

| Unit No. |
Dimensions (mm) |
|||
|
D |
d |
B |
k |
|
| PTU 1307 | 13 | 7.3 | 7 | 2 |
| PTU 1407 | 14 | 7.3 | 7 | 2.5 |
| PTU 1507 | 15 | 7.3 | 7 | 2.5 |
| PTU 1508 | 15 | 8.3 | 6 | 2.5 |
| PTU 1709 | 17.5 | 9.3 | 6 | 2.5 |
| PTU 1710 | 17.5 | 10.3 | 7 | 2.5 |
| PTU 2011 | 20 | 11.3 | 8 | 2.5 |
| PTU 2212 | 22 | 12.3 | 8 | 3.17 |
| PTU 2214 | 22 | 14.4 | 8.5 | 3.17 |
| PTU 2516 | 25 | 16.4 | 9 | 3.17 |
| PTU 2518 | 25 | 18.4 | 10 | 4.76 |
| PTU 3320 | 33 | 20.4 | 10 | 4.76 |
| PTU 3322 | 33 | 22.5 | 12 | 5 |
| PTU 4323 | 43.5 | 23.5 | 12 | 5 |
| PTU 4324 | 43.5 | 24.5 | 12 | 5 |
| PTU 4325 | 43.5 | 25.5 | 12 | 5 |
| PTU 4326 | 43.5 | 26.3 | 12 | 5 |
| Unit No. |
Dimensions (in) |
|||
|
D |
d |
d2 |
B |
|
| PITU 1404 | 27/32 | 1/4 | 21/64 | 0.275 |
| PITU 1407 | 55/64 | 29/64 | 9/32 | 0.478 |
| PITU 1608 | 1 | 1/2 | 11/32 | 0.525 |
| PITU 1706 | 1-3/64 | 3/8 | 23/64 | 0.400 |
| PITU 1707 | 1-3/64 | 7/16 | 23/64 | 0.462 |
| PITU 1708 | 1 | 1/2 | 11/32 | 0.525 |
| PITU 1810 | 1-1/8 | 5/8 | 11/32 | 0.656 |
| PITU 2008 | 1-17/64 | 1/2 | 7/16 | 0.525 |
| PITU 2009 | 1-11/32 | 9/16 | 7/16 | 0.587 |
| PITU 2310 | 1-27/64 | 5/8 | 29/64 | 0.650 |
| PITU 2712 | 1-21/32 | 3/4 | 35/64 | 0.775 |
| PITU 2816 | 1-3/4 | 1-1/64 | 5/8 | 1.031 |
| PITU 3014 | 1-57/64 | 7/8 | 19/32 | 0.900 |
| PITU 3216 | 1-31/32 | 1 | 5/8 | 1.031 |
| PITU 3217 | 1-31/32 | 1-1/16 | 5/8 | 1.094 |
| PITU 3418 | 2-3/32 | 1-1/18 | 5/8 | 1.150 |
| PITU 3419 | 2-3/32 | 1-3/16 | 5/8 | 1.212 |
