THERMA PLASTIC HOUSING - PILLOW BLOCKS

Matching Stainless or Chrome steel Spherical out-side surface Ball Bearing

UCPAL -200 Series
Unit No.
BEARING BORE DIA.
Dimensions (mm)
Weight (kg)

max. TORQUE
inch
mm
a
b
h
m
w
k
Bi
n
Bolt Dia.
Nm
UCPAL201 1/2 12
 33.3 34.5 66 50.8 72.8 M8 31
12.7
 0.13 M10 18
UCPAL202 9/16, 5/8 15 33.3 34.5 66 50.8 72.8 M8 31
12.7
 0.13 M10 18
UCPAL203 11/16 17 33.3 34.5 66 50.8 72.8 M8 31
12.7
 0.13 M10 18
UCPAL204 3/4 20 33.3 34.5 66 50.8 72.8 M8 31
12.7
 0.13 M10 18
UCPAL205 13/16, 7/8, 15/16, 1 25 36.5 39.5 73.5 50.8 76.2 M10 34
14.3
 0.15 M10 25
UCPAL206 1.11/16, 1.1/8, 1.13/16, 1.1/4 30 42.9 42.5 84 76.2 101 M10 38.1
15.9
 0.24 M10 30
UCPAL207 1.1/4, 1.13/16, 1.3/8, 1.7/16 35 47.6 47.5 95 82.6 110 M10 42.9
17.5
 0.28 M10 35
UCPAL208 1 .1/2, 1.9/16 40 49.2 48 100.5 88.9 120 M12 49.2
19
 0.39 M12 45



MODE OF LOAD
BREAKING POINT OF HOUSING (N)
204
205
206
207
208
209
210
8210 8540 10370 12150 12230 12900 13850
6900 7010 6580 8080 9100 10400 11050
2980 2850 4950 8160 9800 10710 11360

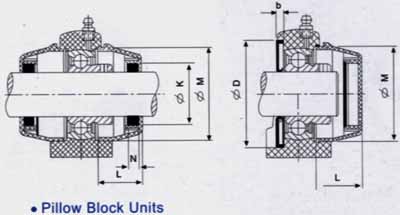

PLASTIC COVERS (OPEN/CLOSE)

Shaft diameter
Dimensions (mm)
mm
inch
K
N
L
M
D
b
12 1/2 32 7 23 50 52 6
15 9/16, 5/8 32 7 23 50 52 6
17 11/16 32 7 23 50 52 6
20 3/4 32 7 23 50 52 6
25 13/16, 7/8, 15/16, 1 37 7 25 55 62 6
30 1.11/16, 1.1/8, 1.13/16, 1.1/4 42 7 30 64 72 6
35 1.1/4, 1.13/16, 1.3/8, 1.7/16 47 7 32 74.5 82 6
40 1.1/2, 1.9/16 52 7 37 84 88 6
45 1.5/8, 1.11/16, 1.3/4 57 7 41 89 93 6
50 1 .13/16, 1.7/8, 1.15/16, 2 62 7 47 94 98 6
