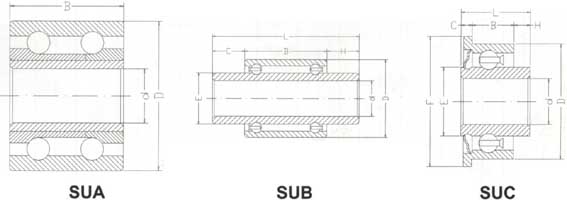

| Unit No. |
Dimensions (mm) |
||
|
D |
d |
B |
|
SUA 2206 |
22 | 6 | 11 |
SUA 2408 |
24 | 8 | 13 |
SUA 2710 |
27 | 10 | 14 |
SUA 2912 |
29 | 12 | 14 |
SUA 3310 |
33 | 10 | 13 |
| Supply company |
 |
| Suzhou
(China) SLZ Machinery Co Ltd Address: No.7 Dong Xiao Qiao Xia Tang, Shi Zi Jie, Suzhou,China 215006 Tel : (86 512) 6521 3180 , Fax: (86 512) 6515 5198 Homepage: http://www.bearingsworld.com Email Address(es): office@bearingsworld.comKey
Contact: |
| Unit No. |
Dimensions (mm) |
Ball
|
|||||||||
|
D |
d |
E |
B |
C |
H |
L |
F |
T |
No. |
Dia.
|
|
SUB 3013 |
30.2 | 13 | 17 | 47 | 7.5 | 7.5 | 62 | 16 | 1/3 | ||
SUC 2308 |
23.1 | 8 | 12 | 7.2 | 3.9 | 11.1 | 25.4 | 1.6 | 7 | 5/32 | |
SUC 2713 |
26.9 | 12.7 | 17.4 | 6.4 | 2.3 | 12.7 | 21.4 | 30 | 1.6 | 9 | 5/32 |
SUC 3313A |
30.38 | 12.7 | 18 | 14.27 | 1.6 | 7.8 | 15.8 | 33.2 | 1.6 | 8 | 3/16 |
SUC 3313B |
30.38 | 12.7 | 18 | 14.27 | 1.6 | 15.1 | 15.8 | 33.2 | 1.6 | 8 | 3/16 |
SUC 3211 |
31.8 | 11.11 | 19 | 5.5 | 4 | 9.5. | 34.9 | 3 | 8 | 3/16 | |
SUD 2311 |
23.1 | 11.11 | 17.5 | 7.2 | 3.8 | 11 | 27 | 1.6 | 17 | 1/8 | |
SUD 2713 |
26.9 | 12.7 | 22 | 6.4 | 2.1 | 8.5 | 30 | 1.6 | 20 | 1/8 | |
SUD 3211 |
31.8 | 11.11 | 23 | 5.5 | 3.5 | 9 | 34.9 | 3 | 17 | 5/32 | |
SUD 3216 |
31.8 | 15.9 | 25.4 | 5.5 | 3.5 | 9 | 34.9 | 2.5 | 19 | 5/32 | |
| Unit No. |
Dimensions (mm) |
||
|
D |
d |
B |
|
SUA 4206 |
35 | 15 | 16 |
SUA 4408 |
38 | 12 | 19 |
SUA 4710 |
41 | 20 | 16 |
SUA 4912 |
44 | 20 | 24 |
SUA 4310 |
48 | 22 | 22 |
