| Zine Die Casted Housings, Zine Die Casted Pillow Blocks | |
UP08 - UP006 |
 |
| Zine Die Casted Housings, Zine Die Casted Pillow Blocks | |
UP08 - UP006 |
|
| Unit No. | Shaft Diameter (mm) |

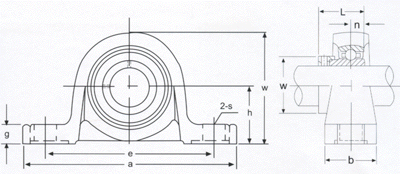

Dimensions (mm) |
bolt site (mm) |
Bearing # |
Housing # |
Weight (kg) |
||||||||||||
h |
a |
e |
b |
s |
g |
W |
L |
n |
w |
|||||||||
| UP08 | 8 |
15 |
55 |
42 |
13 |
4.8 |
5 |
29 |
15 |
3.5 |
- |
M4 |
U08 |
P08 |
0.06 |
|||
UP000 |
10 |
18 |
67 |
53 |
16 |
7 |
6 |
35 |
17.5 |
4 |
17 |
M6 |
U000 |
P000 |
0.08 |
|||
UP001 |
12 |
19 |
71 |
56 |
16 |
7 |
6 |
38 |
17.5 |
4 |
19 |
M6 |
U001 |
P001 |
0.10 |
|||
UP002 |
15 |
22 |
80 |
63 |
16 |
7 |
7 |
43 |
18.5 |
4.5 |
22 |
M6 |
U002 |
P002 |
0.14 |
|||
UP003 |
17 |
24 |
85 |
67 |
18 |
7 |
7 |
47 |
20.5 |
5 |
25 |
M6 |
U003 |
P003 |
0.17 |
|||
UP004 |
20 |
28 |
100 |
80 |
20 |
10 |
9 |
55 |
24.5 |
6 |
30 |
M8 |
U004 |
P04-5 |
0.26 |
|||
UP005 |
25 |
32 |
112 |
90 |
20 |
10 |
10 |
62 |
25.5 |
6 |
36 |
M8 |
U005 |
P05-6 |
0.33 |
|||
UP006 |
30 |
36 |
132 |
106 |
26 |
13 |
11 |
70 |
26.5 |
6.5 |
42 |
M10 |
U006 |
P06-7 |
0.5 |
|||
