SQUARE FLANGE PILLOW BLOCKS

Square Flange Units Square Pillow Blocks

UCF 200 Series

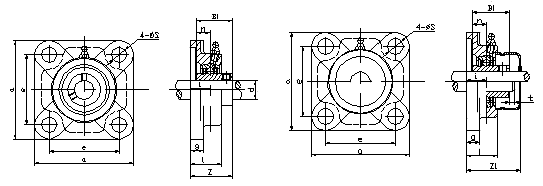

BearingUint No. Shaft Dia d Dimensinons(mm) Bolt Used Bearing No. Housing No. Housing
Wt (kg)
a e i g l s t z1 z Bi n (mm) (in)
(in) (mm)
UCF201-8
UCF202-9
UCF202-10
UCF203-11
UCF201
UCF202
UCF203		 1/2
9/16
5/8
11/16		 12
15
17		 76 54 15 11 25.5 11.5     31 26 10 M10 3/8 UCW201-8
UCW202-9
UCW202-10
UCW203-11
UCW201
UCW202
UCW203		 F203 0.5
UCF201-8 1/2   86 64 15 12 25.5 12 2 40.5 33.3 31 12.7 M10 3/8 UC201-8 F204 0.6
UCF202-9 9/16   UC202-9
UCF202-10 5/8   UC202-10
UCF203-11 11/16   UC203-11
UCF204-12 3/4   UC204-12
UCF201   12 UC201
UCF202   15 UC202
UCF203   17 UC203
UCF204   20 UC204
UCF205-13 13/16 25 95 70 16 14 27 12 2 44.5 35.8 34.1 14.3 M10 3/8 UC205-13 F205 0.86
UCF205-14 7/8 UC205-14
UCF205-15 15/16 UC205-15
UCF205-16 1 UC205-16
UCF205   UC205
UCF206-17 1-1/16 30 108 83 18 14 31 12 2 49 40.2 38.1 15.9 M10 3/8 UC206-17 F206 1.1
UCF206-18 1-1/8 UC206-18
UCF206-19 1-3/16 UC206-19
UCF206-20 1-1/4 UC206-20
UCF206   UC206
UCF207-20 1-1/4 35 117 92 19 16 34 14 3 55 44.4 42.9 17.5 M12 7/16 UC207-20 F207 1.6
UCF207-21 1-5/16 UC207-21
UCF207-22 1-3/8 UC207-22
UCF207-23 1-7/16 UC207-23
UCF207   UC207
UCF208-24 1-1/2 40 130 102 21 16 36 16 3 62 51.2 49.2 19 M14 1/2 UC208-24 F208 1.9
UCF208-25 1-9/16 UC208-25
UCF208   UC208
UCF209-26 1-5/8 45 137 105 22 18 38 16 3 63 52.2 49.2 19 M14 1/2 UC209-26 F209 2.4
UCF209-27 1-11/16 UC209-27
UCF209-28 1-3/4 UC209-28
UCF209   UC209
UCF210-29 1-13/16 50 143 111 22 18 40 16 3 66.5 54.6 51.6 19 M14 1/2 UC210-29 F210 2.6
UCF210-30 1-7/8 UC210-30
UCF210-31 1-15/16 UC210-31
UCF210-32 2 UC210-32
UCF210   UC210
UCF211-32 2 55 162 130 25 20 43 19 4 71 58.4 55.6 22.2 M16 5/8 UC211-32 F211 3.5
UCF211-33 2-1/16 UC211-33
UCF211-34 2-1/8 UC211-34
UCF211-35 2-3/16 UC211-35
UCF211   UC211
UCF212-36 2-1/4 60 175 143 29 20 48 19 4 80 68.7 65.1 25.4 M16 5/8 UC212-36 F212 4.2
UCF212-37 2-5/16 UC212-37
UCF212-38 2-3/8 UC212-38
UCF212-39 2-7/16 UC212-39
UCF212   UC212
UCF213-40 2-1/2 65 187 149 30 20 50 19 4 83.5 69.7 65.1 25.4 M16 5/8 UC213-40 F213 5.3
UCF213-41 2-9/16 UC213-41
UCF213   UC213
UCF214-42 2-5/8 70 193 152 31 24 54 19     75.4 74.6 30.2 M16 5/8 UC214-42 F214 5.5
UCF214-43 2-11/16 UC214-43
UCF214-44 2-3/4 UC214-44
UCF214   UC214
UCF215-45 2-13/16 75 200 159 34 24 56 19     78.5 77.8 33.3 M16 5/8 UC215-45 F215 6.2
UCF215-46 2-7/8 UC215-46
UCF215-47 2-15/16 UC215-47
UCF215-48 3 UC215-48
UCF215   UC215
UCF216-50 3-1/8 80 208 165 34 24 58 23     83.3 82.6 33.3 M20 3/4 UC216-50 F216 7.7
UCF216   UC216
UCF217-52 3-1/4 85 220 175 36 26 63 23     87.6 85.7 34.1 M20 3/4 UC217-52 F217 9
UCF217   UC217
UCF218-56 3-1/2 90 235 187 40 26 68 23     96.3 96.0 39.7 M20 3/4 UC218-56 F218 11.3
UCF218   UC218
