SQUARE FLANGE PILLOW BLOCKS



UCF 300 Series

Square Flange Units - Square Pillow Blocks

  • CAST HOUSINGS F305-F328
  • MATCHING CHROME STEEL BEARINGS UC305-UC328

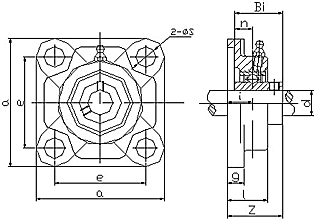

BearingUint No. Shaft Dia d Dimensinons(mm) Bolt Used BearingUint No. Housing No. Housing
Wt (kg)
a e i g l s z Bi n (mm) (in)
(in) (mm)
UCF305-14 7/8 25 110 80 16 13 29 16 39 38 15 M14 1/2 UC305-14 F305 0.90
UCF305-15 15/16 UC305-15
UCF305-16 1 UC305-16
UCF305   UC305
UCF306-18 1-1/8 30 125 95 18 15 32 16 44 43 17 M14 1/2 UC306-18 F306 1.28
UCF306-19 1-3/16 UC306-19
UCF306   UC306
UCF307-20 1-1/4 35 135 100 20 16 36 19 49 48 19 M16 5/8 UC307-20 F307 1.57
UCF307-21 1-5/16 UC307-21
UCF307-22 1-3/8 UC307-22
UCF307-23 1-7/16 UC307-23
UCF307   UC307
UCF308-24 1-1/2 40 150 112 23 17 40 19 56 52 19 M16 5/8 UC308-24 F308 2.00
UCF308-25 1-9/16 UC308-25
UCF308   UC308
UCF309-26 1-5/8 45 160 125 25 18 44 19 60 57 22 M16 5/8 UC309-26 F309 2.60
UCF309-27 1-11/16 UC309-27
UCF309-28 1-3/4 UC309-28
UCF309   UC309
UCF310-30 1-7/8 50 175 132 28 19 48 23 67 61 22 M20 3/4 UC310-30 F310 2.68
UCF310-31 1-15/16 UC310-31
UCF310   UC310
UCF311-32 2 55 185 140 30 20 52 23 71 66 25 M20 3/4 UC311-32 F311 3.30
UCF311-34 2-1/8 UC311-34
UCF311-35 2-3/16 UC311-35
UCF311   UC311
UCF312-36 2-1/4 60 195 150 33 22 56 23 78 71 26 M20 3/4 UC312-36 F312 4.1
UCF312-38 2-3/8 UC312-38
UCF312-39 2-7/16 UC312-39
UCF312   UC312
UCF313-40 2-1/2 65 208 166 33 22 58 23 78 75 30 M20 3/4 UC313-40 F313 4.9
UCF313   UC313
UCF314-44 2-3/4 70 226 178 36 25 61 25 81 78 33 M22 7/8 UC314-44 F314 5.6
UCF314   UC314
UCF315-48 3 75 236 184 39 25 66 25 89 82 32 M22 7/8 UC315-48 F315 7.00
UCF315   UC315
UCF316-50 3-1/8 80 250 196 38 27 68 31 90 86 34 M27 1 UC316-50 F316 9.0
UCF316   UC316
UCF317-52 3-1/4 85 260 204 44 27 74 31 100 96 40 M27 1 UC317-52 F317 10.5
UCF317   UC317
UCF318-56 3-1/2 90 280 216 44 30 76 35 100 96 40 M30 1-1/8 UC318-56 F318 12.8
UCF318   UC318
UCF319-60
UCF319
3-3/4
95 290 228 59 30 94 35 121 103 41 M30 1-1/8 UC319-60
UC319
F319 13.80
UCF320-64
UCF320
4
100 310 242 59 32 94 38 125 108 42 M33 1-1/4 UC320-64
UC320
F320 15.2
UCF321   105 310 242 59 32 94 38 127 112 44 M33 1-1/4 UC321 F321 15.00
UCF322   110 340 266 60 35 96 41 131 117 46 M36   UC322 F322 21.80
UCF324   120 370 290 65 40 110 41 140 126 51 M36   UC324 F324 25.20
UCF326   130 410 320 65 45 115 41 146 135 54 M36   UC326 F326 37.00
UCF328   140 450 350 75 55 125 41 161 145 59 M36   UC328 F328 57.80
